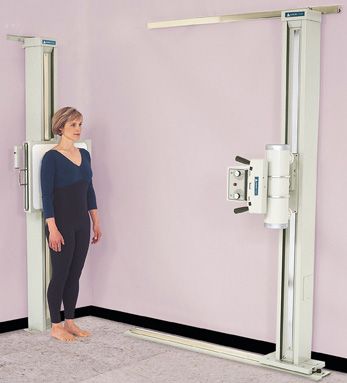

Summit 500mA 14" x 17" High Frequency X-Ray System #3
Item Number:
685 0026
In stock
Questions? Call (800) 747-3488
Estimated Shipping Price
Shipping Surcharge
Subtotal with Surcharge
Shipping information
Est. Domestic Shipping Content
Subtotal with Shipping
Shipping Message
About this item
Summit 500 mA 14" x 17" High Frequency System #3 30 kW power rated Generator Technique selection: Anatomical programming or mAs and kVp option. kVp range: 40 – 125 mA range: 50 – 500, eight stations mAs range: .05 – 420 Microprocessor control Digital display of mAs, mA and kVp Built-in tube protect system 50 ft. interconnect cables UL classified Operates from 230-250 VAC single phase / 100 amp electrical service
Description
Summit 500 mA 14" x 17" High Frequency System #3
- 30 kW power rated Generator
- Technique selection: Anatomical programming or mAs and kVp option.
- kVp range: 40 – 125
- mA range: 50 – 500, eight stations
- mAs range: .05 – 420
- Microprocessor control
- Digital display of mAs, mA and kVp
- Built-in tube protect system
- 50 ft. interconnect cables
- UL classified
- Operates from 230-250 VAC single phase / 100 amp electrical service
Tubestand
- Floor-to-wall or ceiling mount tubestand with 5’ rails
- 10" tubearm
- Angulating tube mount, dial indicator and operator handgrips
Wallstand
- Floor-to-wall, stationary front, full-length vertical structure or Single Column stand
- Electric locks
- 17" x 17" Grid cabinet, 10:1, 103 line grid
- Heavy duty cassette tray
- .06-1.5mm focal spots at 200,000 KUH
- Manual certified light field
- Swivel mount with laser light centering
- 15' high voltage
- 5 years on x-ray parts
- 5 year pro-rated on x-ray tube
- 2 years on collimator parts
